Broadened Horizons

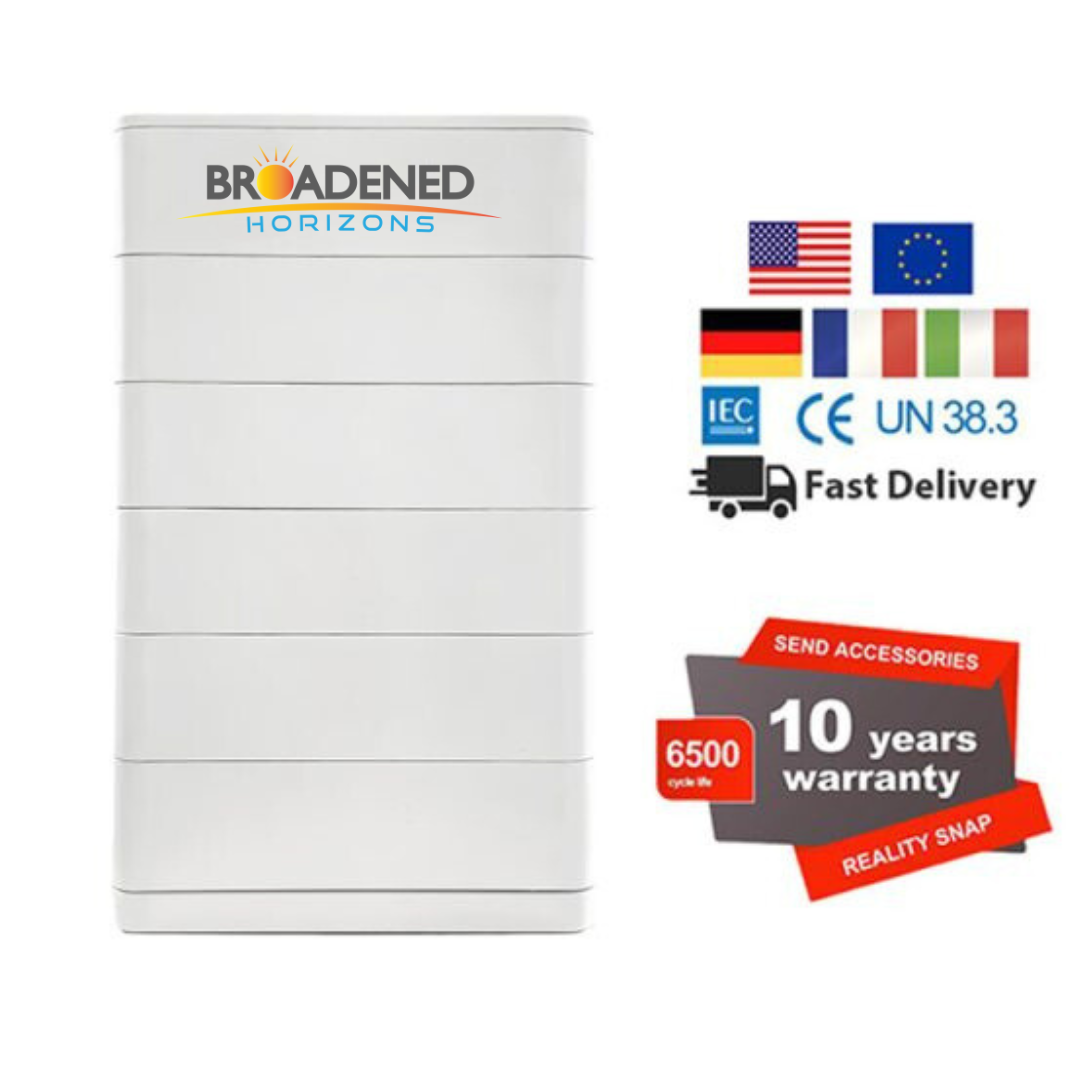

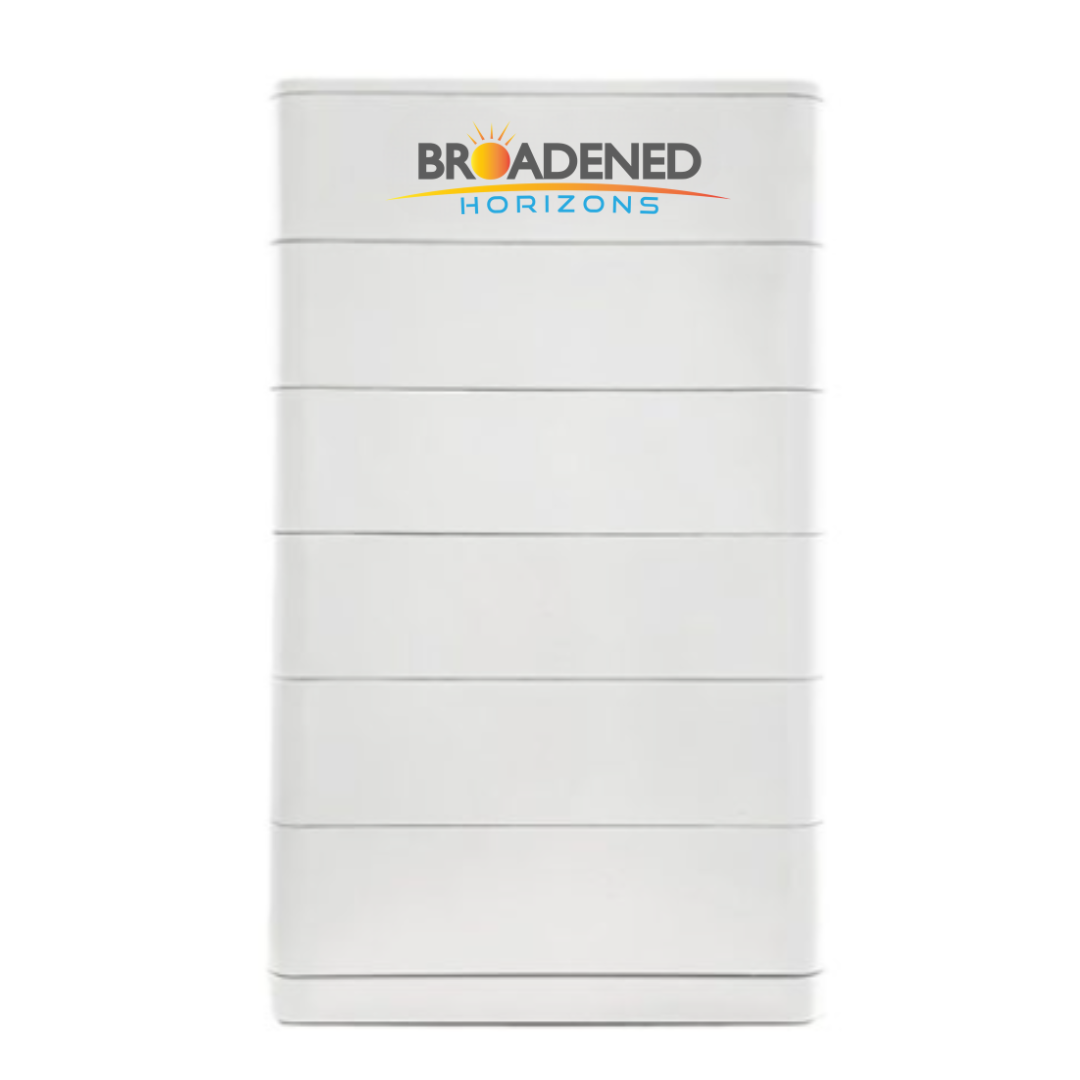

Stacked Lifepo4 Battery Energy Storage System - 30kWh-100kWh

$4,350.00 USD Sold out

Unfortunately, this item is sold-out!

We Ship Worldwide

Domestic: 1-5 days; International: 7-10 days *most* Tax / Duty Exempt

  • Designed by the Disabled
    for the Disabled
  • 100% Satisfaction
    Guarantee
  • Lowest Cost Shipping
    Quoted in Cart

Application scenarios: Solar System, Power Back Up, UPS system

Features

  • Modular design stacks vertically saving valuable space.
  • Simple Floor Installation - no expensive rack or assembly needed.
  • HUGE Capacity & Expandability: 5KWh to 100KWh
  • Grade A Lifepo4 Battery Cells
  • Wide Application: Off-Grid / Hybrid Solar Storage System; Industry Project etc.
  • Most Popular Pace BMS with 100% Protection, Active Balancing - watch Off-Grid Garage's in-depth review.
  • Compatibility with almost every available inverter: Sol-Ark, Victron, Schneider Electric, EG4, SMA, Deye, Luxpower, Growatt, Voltronic, Goodwe, Solis, Sofar, Pylontech, Studer, Sorotec, SRNE
  • Communication Port: CAN/RS485
  • BMS Monitoring Parameters: SOC, System voltage, current, cell voltage
  • Long Service Lifespan: 8000-10000 cycles @ 0.3C 50%DOD. Up to 6000 cycles @ 0.5C 80%DOD
  • Operation Temperature: 0℃ to 45℃
  • Physical Protection: IP60
  • 10 Year Warranty

Module Size Comparison

  • Operating Voltage Range: 44.8~56 volts
Capacity per Module 100AH 5kWh  200AH 10.24kWh 300AH 15kWh
Module Dimensions /" x ?" x ?" inches (736*455*258 mm) 28.9" x 17.9" x 10.2" in (736*455*258 mm) 32.7x17.1x9.4 in  (830×435×240mm)
Module Weight 106lb (48kg) 212lb (96kg) ~265lbs (120kg)
Charge/Discharge Current 100A 150A 150A

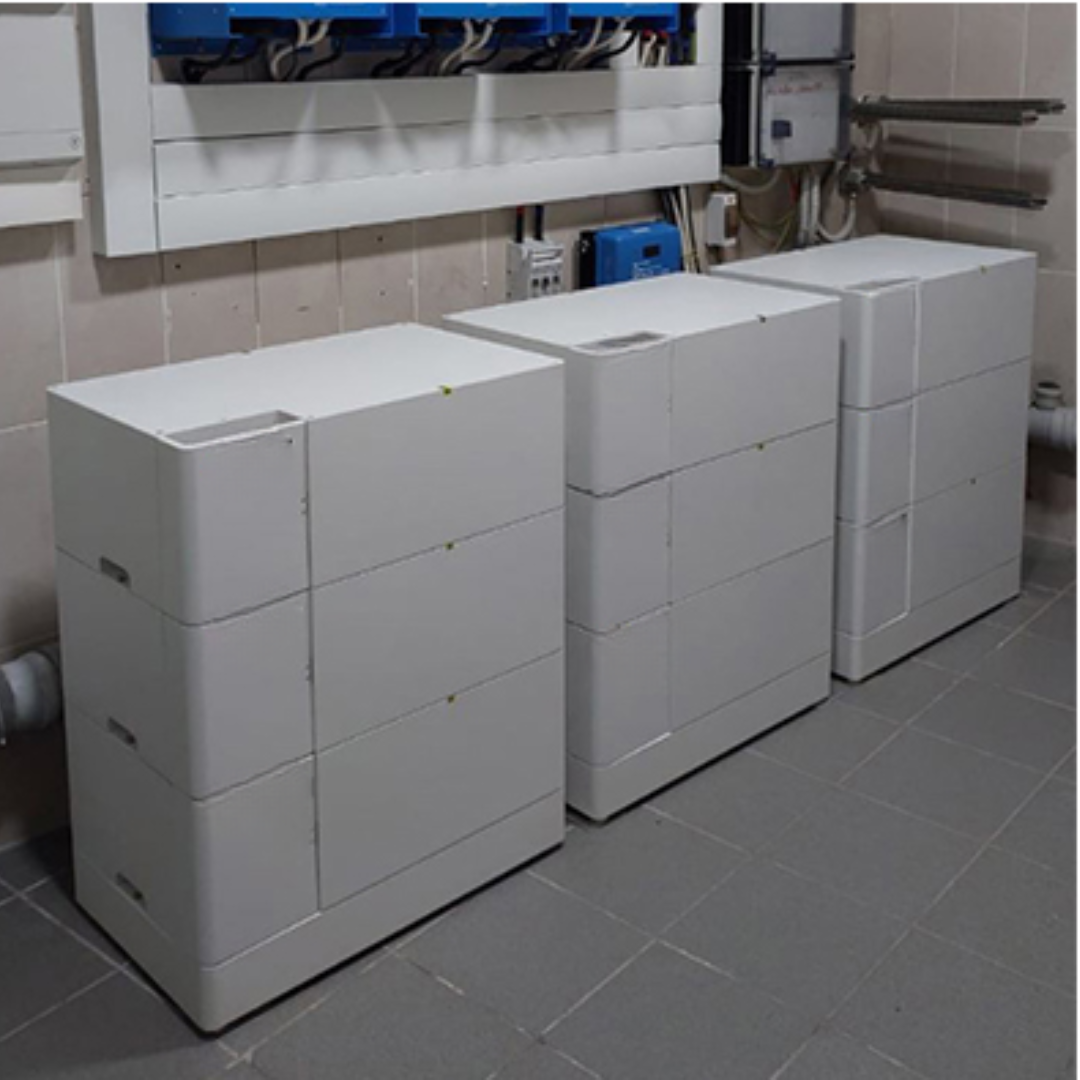

Stacked 200AH Modules Examples

Number of Modules
3 4 5 6 7 8 9 10
Energy Capacity (kWh) 30.72 40.96
51.2
61.44
71.68
81.92
92.16
102.4
Useable Capacity (kW·h)
27.6
36.9
46.1
55.3
64.5
73.7
82.9
92.2
Charge /  Discharge Current
300A
@0.5C
400A
@0.5C
500A
@0.5C
600A
@0.5C
700A
@0.5C
800A
@0.5C
900A @0.5C
1000A @0.5C
Stack
Height
34.6in
880mm

44.8 in
1140mm

55 in
1395mm
65 in
1653mm
75 in
1911mm
85.5in
2170mm
95.6in
2430mm
105.6in
2685mm
Stack Weight(KG)
635lb
288kg
423lb 384kg
550 lb
480 kg
634 lb  576kg
744lb 672kg
815lb 768kg
866lb  864kg
960lb
960kg
